Housing No.

Shaft
dia
d₁

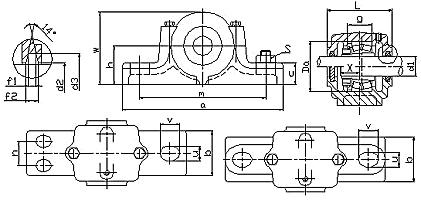

Dimensions(mm)

Housing
Wt
(kg)

Bearing
No.

Adapter
Sleeve

Locating Ring

Housing
No.

D
H8

a

b

c

g
H12

h
h12

L

W

m

n

u

v

f₁
H13

f₂

S

d₂
H12

d₃
H12

(2)

(4)

Number

Q
T
Y

SN3122

SSN3122

100

180

380

110

40

66

112

160

218

320

60

26

32

8

10.8

M24

M16

102

125

17

23122K

H3122

SR180x10

1

SSN3122

SN3124

SSN3124

110

200

410

120

45

72

125

175

240

350

70

26

32

8

10.7

M24

M16

113

135

20

23124K

H3124

SR200x10

1

SSN3124

SN3126

SSN3126

115

210

410

120

45

74

140

185

270

350

70

26

32

8

10.7

M24

M16

118

140

25

23126K

H3126

SR210x10

1

SSN3126

SN3128

SSN3128

125

225

445

130

50

78

150

175

285

380

70

28

36

9

12.2

M24

M20

128

154

30

23128K

H3128

SR225x10

1

SSN3128

SN3130

SSN3130

135

250

500

150

50

90

150

205

305

420

80

33

42

9

12.2

M30

M24

138

164

38

23130K

H3130

SR250x10

1

SSN3130

SN3132

SSN3132

140

270

530

160

60

96

160

220

325

450

90

33

42

10

13.7

M30

M24

143

173

46

23132K

H3132

SR270x10

1

SSN3132
