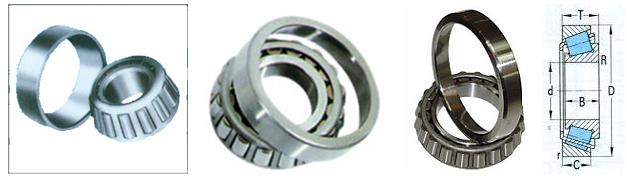

基 本 尺 寸 mm | 现 代 号 | 作 用 点 | 基本额定负荷 kN | 极 限 转 速 rpm | 重 量 | |||||||
Principal dimension | Basic load ratings | |||||||||||
d | D | T | Designations | a | 动dyc | 静stc | 脂润滑 Grease | 油润滑 Oil | Kg | |||
mm | 英寸Inch | mm | 英寸Inch | mm | 英寸Inch | Cr | Cor | |||||
85.725 | 3.375 | 133.35 | 5.25 | 30.162 | 1.1875 | K497/K | 23 | 122 | 198 | 2200 | 3200 | 1.47 |
88.9 | 3.5 | 118.618 | 4.67 | 39.688 | 1.5625 | HM518445/KM518410 | 33 | 260 | 350 | 2000 | 3000 | 2.86 |
88.9 | 3.5 | 152.4 | 6 | 39.688 | 1.5625 | K | 39 | 167 | 286 | 1800 | 2700 | 2.8 |
88.9 | 3.5 | 190.5 | 7.5 | 57.15 | 2.25 | HH221434/HH221410 | 24 | 405 | 610 | 1700 | 2400 | 7.87 |
90* | 3.5433 | 147* | 5.7874 | 40 | KHM218248/KHM218210 | 31 | 250 | 320 | 2200 | 3200 | 2.51 | |
92.075 | 3.625 | 150 | 9.9055 | 35.992 | 1.417 | 34 | 167 | 286 | 1900 | 2800 | 2.37 | |
92.075 | 3.625 | 152.4 | 6 | 39.688 | 1.5625 | 34 | 211 | 315 | 1900 | 2800 | 2.67 | |
95.25 | 3.75 | 152.4 | 6 | 39.688 | 1.5625 | 34 | 207 | 310 | 1900 | 2800 | 2.54 | |
95.25 | 3.75 | 152.4 | 6 | 39.688 | 1.5625 | K | 34 | 207 | 310 | 1900 | 2800 | 2.54 |
95.25 | 3.75 | 152.4 | 6 | 39.688 | 1.5625 | K594/K | 34 | 167 | 286 | 1900 | 2800 | 2.54 |
96.838 | 3.8125 | 148.43 | 5.8437 | 28.575 | 1.125 | K42381/K42584 | 32 | 133 | 230 | 1900 | 2800 | 1.68 |
100* | 155* | 36 | KJM720249/KJM720210 | 36 | 210 | 260 | 1900 | 2800 | 2.34 | |||
101.6 | 4 | 190.5 | 7.5 | 57.15 | 2.25 | HH221449/HH221410 | 24 | 405 | 610 | 1800 | 2600 | 7.87 |
101.6 | 4 | 212.275 | 8.3573 | 66.675 | 2.625 | HH224335/HH224310 | 48 | 595 | 900 | 1800 | 2600 | 11.1 |
110* | 165* | 35 | KJM822049/KJM822010 | 39 | 177 | 320 | 1900 | 2800 | 2.63 | |||
110* | 180* | 47 | JHM522649/JHM522610 | 40 | 290 | 510 | 1900 | 2800 | 4.56 | |||
110* | 180* | 47 | KJM522649/KJM522610 | 40 | 290 | 510 | 1900 | 2800 | 4.56 | |||
114.3 | 4.5 | 228.6 | 9 | 53.975 | 2.125 | KHM926740/KHM926710 | 69 | 365 | 590 | 1700 | 2400 | 9.78 |
120.65 | 4.75 | 273.05 | 10.75 | 82.55 | 3.25 | HH926749/HH926710 | 76 | 740 | 940 | 1700 | 2400 | 22.1 |
127 | 5 | 234.95 | 9.25 | 63.5 | 2.5 | K95500/K95925 | 51 | 470 | 810 | 1700 | 2400 | 11.6 |
133.35 | 5.25 | 196.85 | 7.75 | 46.038 | 1.8125 | 67390/67322 | 40 | 345 | 420 | 1600 | 2200 | 4.71 |
133.35 | 5.25 | 234.95 | 9.25 | 63.5 | 2.5 | 95525/95925 | 51 | 470 | 810 | 1500 | 2000 | 11.1 |
139.7 | 5.5 | 254 | 10 | 66.675 | 2.625 | 99550/99100 | 54 | 650 | 1100 | 1400 | 1900 | 14 |
152.4 | 6 | 268.288 | 10.5625 | 74.612 | 2.9375 | KEE107060/K107105 | 58 | 610 | 1070 | 1200 | 1700 | 16.8 |
152.4 | 6 | 307.975 | 12.125 | 88.9 | 3.5 | HH234048/HH234010 | 63 | 1080 | 1350 | 1100 | 1600 | 30.9 |
158.75 | 6.25 | 225.425 | 8.875 | 41.275 | 1.625 | K46780/K46720 | 44 | 237 | 440 | 1100 | 1600 | 5.24 |
165.1 | 6.5 | 225.425 | 8.875 | 41.275 | 1.625 | K46790/K46720 | 44 | 237 | 440 | 1100 | 1600 | 4.64 |
165.1 | 6.5 | 336.55 | 13.25 | 92.075 | 3.625 | KHH437549/KHH437510 | 72 | 1200 | 1500 | 900 | 1300 | 37.4 |
170* | 230* | 39 | KJM534149/KJM534110 | 44 | 263 | 550 | 1100 | 1600 | 4.45 | |||
171* | 240* | 46 | JM734449/JM734410 | 49 | 325 | 675 | 1000 | 1400 | 6.28 | |||
172* | 240* | 46 | KJM734449/KJM734410 | 52 | 325 | 675 | 1000 | 1400 | 6.28 | |||
174.625 | 6.875 | 288.925 | 11.375 | 63.5 | 2.5 | HM237542/HM237510 | 54 | 740 | 850 | 1000 | 1400 | 16.9 |
174.625 | 6.875 | 288.925 | 11.375 | 63.5 | 2.5 | KHM237542/KHM237510 | 54 | 740 | 850 | 1000 | 1400 | 16.9 |
177.8 | 7 | 247.65 | 9.75 | 47.625 | 1.875 | 67790/67720 | 52 | 380 | 520 | 1000 | 1400 | 7.12 |
177.8 | 7 | 260.35 | 10.25 | 53.975 | 2.125 | M236849/M236810 | 47 | 460 | 560 | 1000 | 1400 | 9.08 |
177.8 | 7 | 288.925 | 11.375 | 63.5 | 2.5 | KHM237545/KHM237510 | 54 | 740 | 850 | 900 | 1300 | 16.7 |
184.15 | 7.25 | 266.7 | 10.5 | 47.625 | 1.875 | 67883CL4/67820CL4 | 46 | 440 | 520 | 900 | 100 | 8.34 |
200* | 300* | 65 | JHM840449/JHM840410 | 72 | 560 | 1240 | 850 | 1200 | 15.5 | |||
206.375 | 8.125 | 336.55 | 13.25 | 98.425 | 3.875 | KH242649/KH242610 | 52 | 880 | 1400 | 850 | 1200 | 33 |
209.55 | 8.25 | 317.5 | 12.5 | 63.5 | 2.5 | 93825/93125 | 73 | 550 | 920 | 850 | 1200 | 16.6 |
209.55 | 8.25 | 317.5 | 12.5 | 63.5 | 2.5 | K93825/K93125 | 73 | 550 | 1130 | 850 | 1200 | 16.6 |
237.33 | 9.3437 | 336.55 | 13.25 | 65.088 | 2.5625 | KM246949/KM246910 | 61 | 640 | 1360 | 850 | 1200 | 17.5 |
241.3 | 9.5 | 444.5 | 17.5 | 101.6 | 4 | EE923095/923175 | 83 | 1220 | 2000 | 750 | 1000 | 65.9 |
241.3 | 9.5 | 508 | 20 | 117.475 | 4.625 | EE390095/390200 | 132 | 1220 | 2000 | 670 | 900 | 96.4 |
247.65 | 9.75 | 346.075 | 13.625 | 63.5 | 2.5 | KM348449/KM348410 | 61 | 610 | 1310 | 850 | 1200 | 17.4 |
254* | 324.975* | 39 | 1-7009 | 71 | 315 | 700 | 850 | 1200 | 8.06 | |||
255* | 324.975* | 39 | 1-7009S | 71 | 315 | 580 | 850 | 1200 | 8.06 | |||
257.175 | 10.125 | 342.9 | 13.5 | 57.15 | 2.25 | M349549/M349510 | 80 | 660 | 880 | 850 | 1200 | 14 |
260.35 | 10.25 | 422.275 | 16.625 | 86.121 | 3.3906 | HM252348/HM252310 | 78 | 1000 | 1800 | 900 | 1300 | 42.8 |
266.7 | 10.5 | 355.6 | 14 | 57.15 | 2.25 | LM451349/LM451310 | 62 | 650 | 800 | 850 | 1200 | 15.1 |
|
