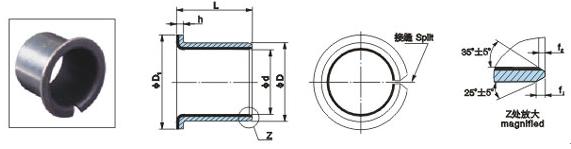

尺寸Norminal Bearing Bore

Recommended

内径Installed Bearling I.D.

法兰尺寸Nominal Flange O.D.

法兰厚度Flange Thick-ness(h)

轴承长度L及轴承规格

轴径Shaft Dia.

座孔Housing Bore

1/4

3/8

1/2

5/8

3/4

1

1 1/8

1 1/4

2

3/8

0.3750 0.3740

0.4684 0.4691

0.3752 0.3779

11/16

0.052 0.044

06/04

06/06

06/08

06/12

1/2

0.5000 0.4990

0.5834 0.5941

0.5002 0.5029

13/16

0.052 0.044

08/04

08/06

08/08

08/12

5/8

0.6250 0.6240

0.7184 0.7192

0.6252 0.6280

15/16

0.052 0.044

10/06

10/06

10/10

10/12

3/4

0.7500 0.7488

0.8747 0.8755

0.7502 0.7534

1 1/8

0.068 0.060

12/06

12/08

12/12

12/16

7/8

0.8750 0.8734

0.9997 1.0005

0.8752 0.8784

1 1/4

0.068 0.060

14/08

14/12

14/16

14/20

1

1.0000 0.9988

1.1247 1.1255

1.0002 1.0034

1 3/8

0.068 0.060

16/08

16/12

16/16

16/20

1 1/4

1.2500 1.2484

1.4058 1.4068

1.2502 1.2540

1 3/4

0.083 0.075

20/16

20/20

20/24

1 1/2

1.5000 4.4984

1.6558 1.6568

1.5002 1.5040

2

0.083 0.075

24/16

24/24

24/32

1 3/4

1.7500 1.7484

1.9371 1.9381

1.7502 1.7548

2 3/8

0.098 0.090

28/16

28/24

28/32
