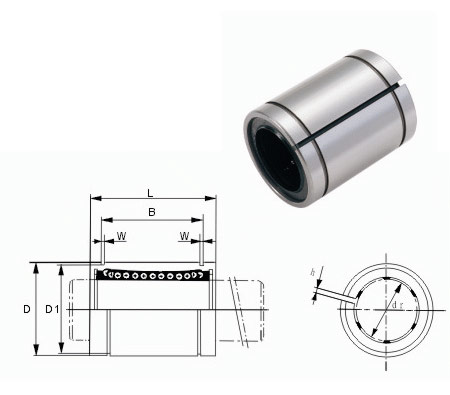

| 型号 | 球列数 | 主要尺寸 | 径向跳动 | 基本额定负载 | | 内径 | 外径 | 长度 | 外止动槽 | W | h | 动
c(kgf) | 静
Co(kgf) | | dr | 公差 | D | 公差 | L | 公差 | B | 公差 | D1 | | SW04AJ | 3 | 1/4 ˝6.35 | 0 -0.009 | 0.5 ˝ 12.7 | 0
-0.011 | 0.75 ˝
19.05 | 0 -0.20 | 0.511 ˝
12.98 | 0 -0.20 | 0.4687 ˝ 11.906 | 0.039 ˝
0.992 | 0.04˝
1 | 0.012 | 21 | 27 | 0
-0.013 | | SW06AJ | 4 | 3/8 ˝ 9.525 | 0.625 ˝
15.875 | 0.875 ˝
22.225 | 0.6385 ˝
16.15 | 0.588 ˝
14.935 | 0.039 ˝
0.992 | 0.04˝
1 | 23 | 32 | | SW08AJ | 4 | 1/2 ˝ 12.7 | 0.875 ˝
22.225 | 1.25 ˝ 31.75 | 0.9625 ˝
24.46 | 0.8209 ˝ 20.853 | 0.0459 ˝
1.168 | 0.06˝
1.5 | 52 | 80 | | SW10AJ | 4 | 5/8 ˝ 15.875 | 1.125 ˝
28.575 | 1.5 ˝ 38.1 | 1.1039 ˝
28.04 | 1.059 ˝
26.899 | 0.0559 ˝
1.422 | 0.06˝
1.5 | 79 | 120 | | SW12AJ | 5 | 3/4 ˝ 19.05 | 0 -0.010 | 1.25 ˝ 31.75 | 0 -0.016 | 1.625 ˝ 41.275 | 1.1657 ˝
29.61 | 1.176 ˝
29.87 | 0.0559 ˝
1.422 | 0.06˝
1.5 | 0.015 | 88 | 140 | | SW16AJ | 5 | 1 ˝ 25.4 | 1.5625 ˝
9.688 | 2.25 ˝
57.15 | 0 -0.30 | 1.7547 ˝
44.57 | 0 -0.30 | 1.4687 ˝ 37.306 | 0.0679 ˝
1.727 | 0.06˝
1.5 | 100 | 160 | | SW20AJ | 6 | 1-1/4 ˝ 31.75 | 0 -0.012 | 2 ˝
50.8 | 0 -0.019 | 2.625 ˝ 6.675 | 2.0047 ˝
50.92 | 1.8859 ˝ 47.904 | 0.0679 ˝
1.727 | 0.10 ˝
2.54 | 0.020 | 160 | 280 | | SW24AJ | 6 | 1-1/2 ˝ 38.1 | 2.375 ˝
60.325 | 3 ˝ 76.2 | 2.4118 ˝
61.26 | 2.2389 ˝
56.87 | 0.0859 ˝
2.184 | 0.12 ˝
3 | 220 | 410 | | SW32AJ | 6 | 2 ˝ 50.8 | 3 ˝
76.2 | 0 -0.022 | 4 ˝ 101.6 | 3.1917 ˝
81.07 | 2.8379 ˝ 72.085 | 0.1029 ˝
2.616 | 0.12 ˝
3 | 0.025 | 390 | 810 |
|
