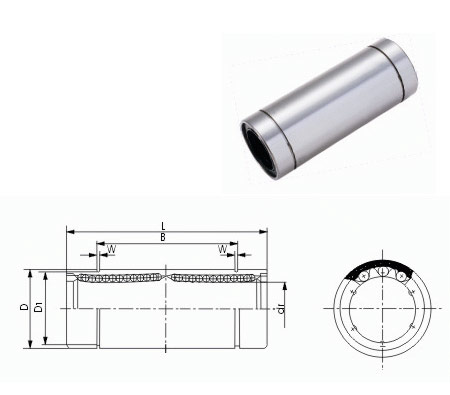

| 型号 | 球列数 | 主要尺寸 | 径向跳动 | 基本额定负载 | | 内径 | 外径 | 长度 | 外止动槽 | W | 动
c(kgf) | 静
Co(kgf) | | dr | 公差 | D | 公差 | L | 公差 | B | 公差 | D1 | | SW04L | 4 | 1/4 ˝ 6.35 | 0 -0.010 | 0.5 ˝ 12.7 | 0 -0.013 | 1.375 ˝
34.925 | 0 -0.30 | 1.022 ˝ 25.959 | 0 -0.30 | 0.4687 ˝ 11.906 | 0.039 ˝
0.992 | 0.015 | 33 | 54 | 0 -0.016 | | SW06L | 4 | 3/8 ˝
9.525 | 0.625 ˝
15.875 | 1.5938 ˝ 40.481 | 1.2716˝
32.298 | 0.588 ˝
14.935 | 0.039 ˝
0.992 | 36 | 64 | | SW08L | 4 | 1/2 ˝
12.7 | 0.875 ˝
22.225 | 2.375 ˝
60.325 | 1.925 ˝
48.895 | 0.8209 ˝ 20.853 | 0.0459 ˝
1.168 | 83 | 160 | | SW10L | 4 | 5/8 ˝ 15.875 | 1.125 ˝
28.575 | 2.8125 ˝ 71.438 | 2.2079 ˝
56.08 | 1.0590 ˝ 26.899 | 0.0559 ˝
1.422 | 126 | 240 | | SW12L | 5 | 3/4 ˝
19.05 | 0 -0.012 | 1.25 ˝
31.75 | 0 -0.019 | 3.0937 ˝ 78.581 | 2.3314 ˝
59.218 | 1.176 ˝
29.87 | 0.0559 ˝
1.422 | 0.020 | 140 | 280 | | SW16L | 5 | 1 ˝
25.4 | 1.5625 ˝ 39.688 | 4.283 ˝
108.744 | 0 -0.40 | 3.5094 ˝
89.139 | 0 -0.40 | 1.4687 ˝ 37.306 | 0.0679 ˝
1.727 | 160 | 320 | | SW20L | 6 | 1-1/4 ˝ 31.75 | 0 -0.015 | 2 ˝ 50.8 | 0 -0.022 | 5 ˝
127 | 4.0094˝
101.839 | 1.8859 ˝ 47.904 | 0.0679 ˝
1.727 | 0.025 | 255 | 560 | | SW24L | 6 | 1-1/2 ˝
38.1 | 2.375 ˝
60.325 | 5.6875 ˝ 144.463 | 4.8236 ˝ 122.519 | 2.2389 ˝
56.87 | 0.0859 ˝
2.184 | 350 | 820 | | SW32L | 6 | 2 ˝ 50.8 | 3 ˝ 76.2 | 0 -0.025 | 7.75 ˝
196.85 | 6.3834 ˝
162.138 | 2.8379 ˝ 72.085 | 0.1029 ˝
2.616 | 0.030 | 620 | 1622 |
|
