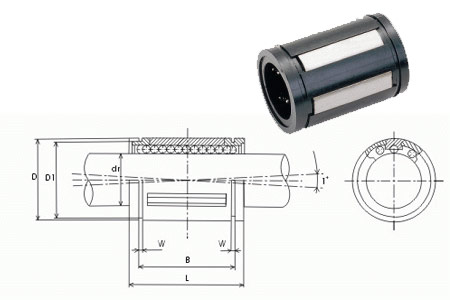

| 型号 | 球
列数 | 主要尺寸 | 间隙 | 基本额定负载 | dr | D | L | B | D1 | W | H7/h6 | 动 c
(kgf) | 静 Co
(kgf) | | SSW4 | 3 | 1/4 ˝ 6.35 | 0.5 ˝ 12.7 | 0.75 ˝ 19.05 | 0.515˝ 13.081 | 0.4687 ˝ 11.905 | 0.039 ˝ 0.991 | +0.011~+0.042 | 27 | 36 | | SSW6 | 4 | 3/8 ˝ 9.525 | 0.625 ˝ 15.875 | 0.875 ˝ 22.225 | 0.703˝ 17.856 | 0.588 ˝ 14.935 | 0.039 ˝ 0.991 | +0.011~+0.042 | 43 | 54 | | SSW8 | 4 | 1/2 ˝ 12.7 | 0.875 ˝ 22.225 | 1.25 ˝ 31.75 | 1.032˝ 26.213 | 0.8209 ˝ 20.85 | 0.0459 ˝ 1.166 | +0.011~+0.042 | 104 | 132 | | SSW10 | 4 | 5/8 ˝ 15.875 | 1.125 ˝ 28.575 | 1.5 ˝ 38.1 | 1.112˝ 28.245 | 1.059 ˝ 26.899 | 0.0559 ˝ 1.42 | +0.011~+0.042 | 182 | 228 | | SSW12 | 4 | 3/4 ˝ 19.05 | 1.25 ˝ 31.75 | 1.625 ˝ 41.275 | 1.272˝ 32.309 | 1.176 ˝ 29.87 | 0.0559 ˝ 1.42 | +0.012~+0.050 | 213 | 268 | | SSW16 | 5 | 1 ˝ 25.4 | 1.5625 ˝ 39.688 | 2.25 ˝ 57.15 | 1.886˝ 47.904 | 1.4687 ˝ 37.305 | 0.0679 ˝ 1.725 | +0.012~+0.050 | 386 | 481 | | SSW20 | 5 | 1-1/4 ˝ 31.75 | 2 ˝ 50.8 | 2.625 ˝ 66.675 | 2.011˝ 51.079 | 1.8859 ˝ 47.9 | 0.0679˝ 1.725 | +0.012~+0.050 | 558 | 695 | | SSW24 | 6 | 1-1/2 ˝ 38.1 | 2.375 ˝ 60.325 | 3 ˝ 76.2 | 2.422˝ 61.519 | 2.2389 ˝ 56.868 | 0.0859 ˝ 2.182 | +0.013~+0.055 | 672 | 840 | | SSW32 | 6 | 2 ˝
50.8 | 3 ˝
76.2 | 4 ˝ 101.6 | 3.206˝ 81.432 | 2.8379 ˝ 72.083 | 0.1029 ˝ 2.614 | +0.013~+0.055 | 1102 | 1377 |
|
