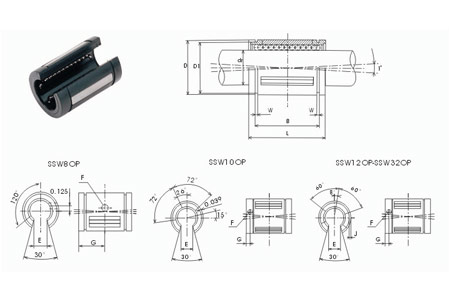

| 型号 | 球列数 | 主要尺寸 | 间隙 | 基本额定负载 | | dr | D | L | B | D1 | W | E | F | G | J | H7/h6 | 动 c
(kgf) | 静Co
(kgf) | | SSW8OP | 4 | 1/2 ˝ 12.7 | 0.875 ˝ 22.225 | 1.25 ˝ 31.75 | 1.032˝ 26.213 | 0.8209 ˝ 20.85 | 0.0459 ˝ 1.166 | 0.313˝ 7.95 | 0.136˝ 3.45 | 0.625˝ 15.875 | | +0.011~+0.042 | 104 | 132 | | SSW10OP | 4 | 5/8 ˝ 15.875 | 1.125 ˝ 28.575 | 1.5 ˝ 38.1 | 1.112˝ 28.245 | 1.059 ˝ 26.899 | 0.0559 ˝ 1.42 | 0.375˝ 9.525 | 0.105˝ 2.667 | 0.125˝ 3.175 | 0.039 0.991 | +0.011~+0.042 | 182 | 228 | | SSW12OP | 4 | 3/4 ˝ 19.05 | 1.25 ˝ 31.75 | 1.625 ˝ 41.275 | 1.272˝ 32.309 | 1.176 ˝ 29.87 | 0.0559 ˝ 1.42 | 0.438˝ 11.125 | 0.136˝ 3.454 | 0.125˝ 3.175 | 0.059 1.499 | +0.012~+0.050 | 213 | 268 | | SSW16OP | 5 | 1 ˝ 25.4 | 1.5625 ˝ 39.688 | 2.25 ˝ 57.15 | 1.886˝ 47.904 | 1.4687 ˝ 37.305 | 0.0679 ˝ 1.725 | 0.563˝ 14.3 | 0.136˝ 3.454 | 0.125˝ 3.175 | 0.047 1.194 | +0.012~+0.050 | 386 | 481 | | SSW20OP | 5 | 1-1/4 ˝ 31.75 | 2 ˝ 50.8 | 2.625 ˝ 66.675 | 2.011˝ 51.079 | 1.8859 ˝ 47.9 | 0.0679˝ 1.725 | 0.625˝ 15.875 | 0.201˝ 5.105 | 0.1875˝ 4.763 | 0.09 2.286 | +0.012~+0.050 | 558 | 695 | | SSW24OP | 6 | 1-1/2 ˝ 38.1 | 2.375 ˝ 60.325 | 3 ˝ 76.2 | 2.422˝ 61.519 | 2.2389 ˝ 56.868 | 0.0859 ˝ 2.182 | 0.75˝ 19.05 | 0.201˝ 5.105 | 0.1875˝ 4.763 | 0.09 2.286 | +0.013~+0.055 | 672 | 840 | | SSW32OP | 6 | 2 ˝ 50.8 | 3 ˝ 76.2 | 4 ˝ 101.6 | 3.206˝ 81.432 | 2.8379 ˝ 72.083 | 0.1029 ˝ 2.614 | 1˝ 25.4 | 0.265˝ 6.731 | 0.3125˝ 7.938 | | +0.013~+0.055 | 1102 | 1377 |
|
