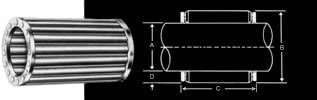

Bearing | Shaft | Outside | Operating | Roller | Rating |
Number | Dia. | Dia. | Space | Dia. | at |
A | B | C | D | 100RPM | |
| 320516 | 2.0000 | 2.6250 | 1.000 | .3125 | 3730 |
| 320524 | 2.0000 | 2.6250 | 1.500 | .3125 | 5550 |
| 320532 | 2.0000 | 2.6250 | 2.000 | .3125 | 7210 |
| 320540 | 2.0000 | 2.6250 | 2.500 | .3125 | 8760 |
| 320548 | 2.0000 | 2.6250 | 3.000 | .3125 | 10250 |
| 320556 | 2.0000 | 2.6250 | 3.500 | .3125 | 11670 |
| 320564 | 2.0000 | 2.6250 | 4.000 | .3125 | 13040 |
| 320628 | 2.0000 | 2.7500 | 1.750 | .3750 | 6500 |
| 320632 | 2.0000 | 2.7500 | 2.000 | .3750 | 8090 |
| 320640 | 2.0000 | 2.7500 | 2.500 | .3750 | 9840 |
| 320732 | 2.0000 | 2.8750 | 2.000 | .4375 | 7700 |
| 320764 | 2.0000 | 2.8750 | 4.000 | .4375 | 13930 |
| 320824 | 2.0000 | 3.0000 | 1.500 | .5000 | 5970 |
| 320828 | 2.0000 | 3.0000 | 1.750 | .5000 | 6870 |
| 320832 | 2.0000 | 3.0000 | 2.000 | .5000 | 7750 |
| 320840 | 2.0000 | 3.0000 | 2.500 | .5000 | 9420 |
| 320848 | 2.0000 | 3.0000 | 3.000 | .5000 | 11020 |
| 320864 | 2.0000 | 3.0000 | 4.000 | .5000 | 14020 |
| 320880 | 2.0000 | 3.0000 | 5.000 | .5000 | 16850 |
| 321024 | 2.0000 | 3.2500 | 1.500 | .6250 | 6890 |
| 321032 | 2.0000 | 3.2500 | 2.000 | .6250 | 8950 |
| 321040 | 2.0000 | 3.2500 | 2.500 | .6250 | 10880 |
| 321048 | 2.0000 | 3.2500 | 3.000 | .6250 | 12720 |
| 321064 | 2.0000 | 3.2500 | 4.000 | .6250 | 16190 |
| 321080 | 2.0000 | 3.2500 | 5.000 | .6250 | 19460 |
| 330628 | 2.0625 | 2.8125 | 1.750 | .3750 | 7180 |
| 330928 | 2.0625 | 3.1875 | 1.750 | .5625 | 8870 |
| 340416 | 2.1250 | 2.6250 | 1.000 | .2500 | 2880 |
| 340420 | 2.1250 | 2.6250 | 1.250 | .2500 | 3610 |
| 340424 | 2.1250 | 2.6250 | 1.500 | .2500 | 4290 |
| 340522 | 2.1250 | 2.7500 | 1.375 | .3125 | 5110 |
| 340524 | 2.1250 | 2.7500 | 1.500 | .3125 | 5550 |
| 340532 | 2.1250 | 2.7500 | 2.000 | .3125 | 7210 |
| 340540 | 2.1250 | 2.7500 | 2.500 | .3125 | 8760 |
| 340556 | 2.1250 | 2.7500 | 3.500 | .3125 | 11670 |
| 340648 | 2.1250 | 2.8750 | 3.000 | .3750 | 11510 |
| 341444 | 2.1250 | 3.8750 | 2.750 | .8750 | 14980 |
| 350418 | 2.1875 | 2.6875 | 1.125 | .2500 | 3680 |
| 350648 | 2.1875 | 2.9375 | 3.000 | .3750 | 12570 |
| 351448 | 2.1875 | 3.9375 | 3.000 | .8750 | 16130 |
| 351464 | 2.1875 | 3.9375 | 4.000 | .8750 | 20540 |
| 351480 | 2.1875 | 3.9375 | 5.000 | .8750 | 24680 |
| 351496 | 2.1875 | 3.9375 | 6.000 | .8750 | 28640 |
| 360416 | 2.2500 | 2.7500 | 1.000 | .2500 | 3260 |
| 360424 | 2.2500 | 2.7500 | 1.500 | .2500 | 4860 |
| 360432 | 2.2500 | 2.7500 | 2.000 | .2500 | 6310 |
| 360448 | 2.2500 | 2.7500 | 3.000 | .2500 | 8970 |
| 361024 | 2.2500 | 3.5000 | 1.500 | .6250 | 8620 |
| 361032 | 2.2500 | 3.5000 | 2.000 | .6250 | 11200 |
| 361040 | 2.2500 | 3.5000 | 2.500 | .6250 | 13610 |
| 361048 | 2.2500 | 3.5000 | 3.000 | .6250 | 15920 |
| 361064 | 2.2500 | 3.5000 | 4.000 | .6250 | 20260 |
| 361448 | 2.2500 | 4.0000 | 3.000 | .8750 | 16280 |
| 361464 | 2.2500 | 4.0000 | 4.000 | .8750 | 20720 |
| 361480 | 2.2500 | 4.0000 | 5.000 | .8750 | 24900 |
| 361496 | 2.2500 | 4.0000 | 6.000 | .8750 | 28890 |
| 380424 | 2.3750 | 2.8750 | 1.500 | .2500 | 5190 |
| 380428 | 2.3750 | 2.8750 | 1.750 | .2500 | 5980 |
| 380432 | 2.3750 | 2.8750 | 2.000 | .2500 | 6740 |
| 380440 | 2.3750 | 2.8750 | 2.500 | .2500 | 8190 |
| 380448 | 2.3750 | 2.8750 | 3.000 | .2500 | 9580 |
| 380456 | 2.3750 | 2.8750 | 3.500 | .2500 | 10910 |
| 380615 | 2.3750 | 3.1250 | .937 | .3750 | 4240 |
| 380619 | 2.3750 | 3.1250 | 1.187 | .3750 | 5390 |
| 380620 | 2.3750 | 3.1250 | 1.250 | .3750 | 4950 |
| 380628 | 2.3750 | 3.1250 | 1.750 | .3750 | 7780 |
| 380632 | 2.3750 | 3.1250 | 2.000 | .3750 | 8770 |
| 380645 | 2.3750 | 3.1250 | 2.812 | .3750 | 10290 |
| 400516 | 2.5000 | 3.1250 | 1.000 | .3125 | 4260 |
| 400532 | 2.5000 | 3.1250 | 2.000 | .3125 | 8240 |
| 400616 | 2.5000 | 3.2500 | 1.000 | .3750 | 4150 |
| 400632 | 2.5000 | 3.2500 | 2.000 | .3750 | 8030 |
| 400648 | 2.5000 | 3.2500 | 3.000 | .3750 | 11410 |
| 400656 | 2.5000 | 3.2500 | 3.500 | .3750 | 12990 |
| 401072 | 2.5000 | 3.7500 | 4.500 | .6250 | 19640 |
| 401148 | 2.5000 | 3.8750 | 3.000 | .6875 | 15380 |
| 401164 | 2.5000 | 3.8750 | 4.000 | .6875 | 19570 |
| 401180 | 2.5000 | 3.8750 | 5.000 | .6875 | 23530 |
| 401196 | 2.5000 | 3.8750 | 6.000 | .6875 | 27300 |
| 401524 | 2.5000 | 4.3750 | 1.500 | .9375 | 9490 |
| 401540 | 2.5000 | 4.3750 | 2.500 | .9375 | 15000 |
| 401548 | 2.5000 | 4.3750 | 3.000 | .9375 | 17530 |
| 401564 | 2.5000 | 4.3750 | 4.000 | .9375 | 22310 |
| 401580 | 2.5000 | 4.3750 | 5.000 | .9375 | 26820 |
| 401596 | 2.5000 | 4.3750 | 6.000 | .9375 | 31120 |
| 420420 | 2.6250 | 3.1250 | 1.250 | .2500 | 3730 |
| 420424 | 2.6250 | 3.1250 | 1.500 | .2500 | 4440 |
| 441148 | 2.7500 | 4.1250 | 3.000 | .6875 | 17780 |
| 441164 | 2.7500 | 4.1250 | 4.000 | .6875 | 22630 |
| 441180 | 2.7500 | 4.1250 | 5.000 | .6875 | 27200 |
| 441196 | 2.7500 | 4.1250 | 6.000 | .6875 | 31560 |
| 441524 | 2.7500 | 4.6250 | 1.500 | .9375 | 10550 |
| 441532 | 2.7500 | 4.6250 | 2.000 | .9375 | 13710 |
| 441548 | 2.7500 | 4.6250 | 3.000 | .9375 | 19490 |
| 441564 | 2.7500 | 4.6250 | 4.000 | .9375 | 24810 |
| 441580 | 2.7500 | 4.2650 | 5.000 | .9375 | 29810 |
| 441596 | 2.7500 | 4.6250 | 6.000 | .9375 | 34590 |
| 460524 | 2.8750 | 3.5000 | 1.500 | .3125 | 6170 |
| 460532 | 2.8750 | 3.5000 | 2.000 | .3125 | 8020 |
| 460548 | 2.8750 | 3.5000 | 3.000 | .3125 | 11400 |
| 460556 | 2.8750 | 3.5000 | 3.500 | .3125 | 12980 |
| 460828 | 2.8750 | 3.8750 | 1.750 | .5000 | 9780 |
| 460831 | 2.8750 | 3.8750 | 1.937 | .5000 | 10720 |
| 460848 | 2.8750 | 3.8750 | 3.000 | .5000 | 15670 |
| 481080 | 3.0000 | 4.2500 | 5.000 | .6250 | 29030 |
| 481096 | 3.0000 | 4.2500 | 6.000 | .6250 | 33680 |
| 481264 | 3.0000 | 4.5000 | 4.000 | .7500 | 23280 |
| 481280 | 3.0000 | 4.5000 | 5.000 | .7500 | 27980 |
| 481296 | 3.0000 | 4.5000 | 6.000 | .7500 | 32470 |
| 481640 | 3.0000 | 5.0000 | 2.500 | 1.0000 | 17870 |
| 481648 | 3.0000 | 5.0000 | 3.000 | 1.0000 | 20890 |
| 481664 | 3.0000 | 5.0000 | 4.000 | 1.0000 | 26590 |
| 481680 | 3.0000 | 5.0000 | 5.000 | 1.0000 | 31950 |
| 481696 | 3.0000 | 5.0000 | 6.000 | 1.0000 | 37080 |
| 500440 | 3.1250 | 3.6250 | 2.500 | .2500 | 9080 |
| 520532 | 3.2500 | 3.8750 | 2.000 | .3125 | 8930 |
| 520540 | 3.2500 | 3.8750 | 2.500 | .3125 | 10860 |
| 520548 | 3.2500 | 3.8750 | 3.000 | .3125 | 12690 |
| 520556 | 3.2500 | 3.8750 | 3.500 | .3125 | 14450 |
| 540517 | 3.3750 | 4.0000 | 1.062 | .3125 | 5100 |
| 540518 | 3.3750 | 4.0000 | 1.125 | .3125 | 5400 |
| 540840 | 3.3750 | 4.3750 | 2.500 | .5000 | 14520 |
| 550624 | 3.4375 | 4.1875 | 1.500 | .3750 | 8020 |
| 550632 | 3.4375 | 4.1875 | 2.000 | .3750 | 10410 |
| 550648 | 3.4375 | 4.1875 | 3.000 | .3750 | 14800 |
| 550656 | 3.4375 | 4.1875 | 3.500 | .3750 | 16860 |
| 550664 | 3.4375 | 4.1875 | 4.000 | .3750 | 18840 |
| 561448 | 3.5000 | 5.2500 | 3.000 | .8750 | 21580 |
| 561464 | 3.5000 | 5.2500 | 4.000 | .8750 | 27470 |
| 561480 | 3.5000 | 5.2500 | 5.000 | .8750 | 33020 |
| 561496 | 3.5000 | 5.2500 | 6.000 | .8750 | 38310 |
| 561840 | 3.5000 | 5.7500 | 2.500 | 1.1250 | 22140 |
| 561864 | 3.5000 | 5.7500 | 4.000 | 1.1250 | 32940 |
| 561880 | 3.5000 | 5.7500 | 5.000 | 1.1250 | 39590 |
| 561896 | 3.5000 | 5.7500 | 6.000 | 1.1250 | 45930 |
| 5618112 | 3.5000 | 5.7500 | 7.000 | 1.1250 | 52030 |
| 620632 | 3.8750 | 4.6250 | 2.000 | .3750 | 9580 |
| 620640 | 3.8750 | 4.6250 | 2.500 | .3750 | 11650 |
| 640880 | 4.0000 | 5.0000 | 5.000 | .5000 | 31670 |
| 660528 | 4.1250 | 4.7500 | 1.750 | .3125 | 8830 |
| 660564 | 4.1250 | 4.7500 | 4.000 | .3125 | 18020 |
| 720832 | 4.5000 | 5.5000 | 2.000 | .5000 | 14180 |
| 720840 | 4.5000 | 5.5000 | 2.500 | .5000 | 17250 |
| 720848 | 4.5000 | 5.5000 | 3.000 | .5000 | 20160 |
| 720856 | 4.5000 | 5.5000 | 3.500 | .5000 | 22960 |
| 720864 | 4.5000 | 5.5000 | 4.000 | .5000 | 25660 |
| 720880 | 4.5000 | 5.5000 | 5.000 | .5000 | 30850 |
| 722040 | 4.5000 | 7.0000 | 2.500 | 1.2500 | 26850 |
| 722080 | 4.5000 | 7.0000 | 5.000 | 1.2500 | 48030 |
| 840824 | 5.2500 | 6.2500 | 1.500 | .5000 | 11390 |
| 900864 | 5.6250 | 6.6250 | 4.000 | .5000 | 29260 |
| 900880 | 5.6250 | 6.6250 | 5.000 | .5000 | 35160 |
|
