Bearing Unit
NO.

Shaft Dia
d

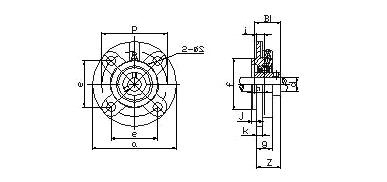

Dimensions(mm)

Bolt Used

Bearing No.

Housing
No.

Housing
Wt (kg)

(in)

(mm)

a

p

e

i

s

j

k

g

f

z

Bi

n

mm

in

UCFCS206-17
UCFCS206-18
UCFCS206-19
UCFCS206-20
UCFCS206

1-1/16
1-1/8
1-3/16
1-1/4

30

111

92

65

10

9.5

6.4

9.5

24

76.2

31.7

38.1

15.9

M8

5/16

UC206-17
UC206-18
UC206-19
UC206-20
UC206

FCS206

1.04

UCFCS207-20
UCFCS207-21
UCFCS207-22
UCFCS207-23
UCFCS207

1-1/4
1-5/16
1-3/8
1-7/16

35

127

105

74.3

8

12

9.5

9.5

22

85.7

32.9

42.9

17.5

M10

3/8

UC207-20
UC207-21
UC207-22
UC207-23
UC207

FCS207

1.43

UCFCS208-24
UCFCS208-25
UCFCS208

1-1/2
1-9/16

40

134

111

78.5

9

12

11

11

26

92

38.6

49.2

19

M10

3/8

UC208-24
UC208-25
UC208

FCS208

1.68

UCFCS209-26
UCFCS209-27
UCFCS209-28
UCFCS209

1-5/8
1-11/16
1-3/4

45

155

130

92

5.5

14

12

12

22

108

35.2

49.2

19

M12

7/16

UC209-26
UC209-27
UC209-28
UC209

FCS209

1.73

UCFCS210-29
UCFCS210-30
UCFCS210-31
UCFCS210-32
UCFCS210

1-13/16
1-7/8
1-15/16
2

50

155

130

92

8

14

12

11

25

108

40

51.6

19

M12

7/16

UC210-29
UC210-30
UC210-31
UC210-32
UC210

FCS210

2.36

UCFCS211-32
UCFCS211-33
UCFCS211-34
UCFCS211-35
UCFCS211

2
2-1/16
2-1/8
2-3/16

55

162

137

96.9

7

14

16

11

25

114

39.8

55.6

22.2

M12

7/16

UC211-32
UC211-33
UC211-34
UC211-35
UC211

FCS211

2.72

UCFCS212-36
UCFCS212-37
UCFCS212-38
UCFCS212-39
UCFCS212

2-1/4
2-5/16
2-3/8
2-7/16

60

180

152

108

4

16

22

13

26

127

43

65.1

25.4

M14

1/2

UC212-36
UC212-37
UC212-38
UC212-39
UC212

FCS212

3.74

UCFCS213-40
UCFCS213-41
UCFCS213

2-1/2
2-9/16

65

193

165

117

11

16

20

15

33

140

49.9

65.1

25.4

M14

1/2

UC213-40
UC213-41
UC213

FCS213

4.34
