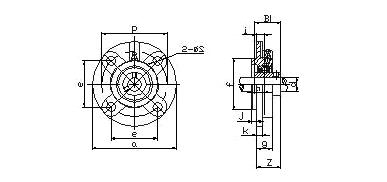

Bearing Unit NO. | Shaft Dia
d | Dimensions(mm) | Bolt Used | Bearing No. | Housing
No. | Housing
Wt (kg) |
(in) | (mm) | a | p | e | i | s | j | k | g | f | z | Bi | n | (in) | (mm) |
UCFCSX05-16
UCFCSX05 | 1 | 25 | 111 | 92 | 65 | 10 | 9.5 | 6.4 | 9.5 | 24 | 76.2 | 32.2 | 38.1 | 15.9 | 5/16 | M8 | UCX05-16
UCX05 | FCSX05 | 1.02 |
UCFCSX06-19
UCFCSX06-20
UCFCSX06 | 1-3/16
1-1/4 | 30 | 127 | 105 | 74.2 | 8 | 12 | 9.5 | 9.5 | 22 | 85.7 | 33.4 | 42.9 | 17.5 | 3/8 | M10 | UCX06-19
UCX06-20
UCX06 | FCSX06 | 1.46 |
UCFCSX07-22
UCFCSX07-23
UCFCSX07 | 1-3/8
1-7/16 | 35 | 133 | 111 | 78.5 | 9 | 12 | 11.1 | 11 | 26 | 92 | 39.2 | 49.2 | 19 | 3/8 | M10 | UCX07-22
UCX07-23
UCX07 | FCSX07 | 1.94 |
UCFCSX08-24
UCFCSX08 | 1-1/2 | 40 | 133 | 111 | 78.5 | 9 | 12 | 11.1 | 11 | 26 | 92 | 39.2 | 49.2 | 19 | 3/8 | M10 | UCX08-24
UCX08 | FCSX08 | 2.4 |
UCFCSX09-26
UCFCSX09-27
UCFCSX09-28
UCFCSX09 | 1-5/8
1-11/16
1-3/4 | 45 | 156 | 130 | 92 | 8 | 14 | 11.9 | 11 | 25 | 108 | 40.6 | 51.6 | 19 | 7/16 | M12 | UCX09-26
UCX09-27
UCX09-28
UCX09 | FCSX09 | 2.8 |
UCFCSX10-31
UCFCSX10-32
UCFCSX10 | 1-15/16
2 | 50 | 162 | 137 | 96.2 | 7 | 14 | 15.9 | 11 | 25 | 114 | 40.4 | 55.6 | 22.2 | 7/16 | M12 | UCX10-31
UCX10-32
UCX10 | FCSX10 | 3.06 |
UCFCSX11-35
UCFCSX11-36
UCFCSX11 | 2-3/16
2-1/4 | 55 | 181 | 152 | 108 | 4 | 16 | 22.2 | 12.7 | 26 | 127 | 43.7 | 65.1 | 25.4 | 1/2 | M14 | UCX11-35
UCX11-36
UCX11 | FCSX11 | 4.3 |
UCFCSX12-38
UCFCSX12-39
UCFCSX12 | 2-3/8
2-7/16 | 60 | 194 | 165 | 117 | 11 | 16 | 19.8 | 14.3 | 33 | 140 | 50.7 | 65.1 | 25.4 | 1/2 | M14 | UCX12-38
UCX12-39
UCX12 | FCSX12 | 5.6 |
UCFCSX13-40
UCFCSX13 | 2-1/2 | 65 | 194 | 165 | 117 | 11 | 16 | 19.8 | 14.3 | 33 | 140 | 55.4 | 74.6 | 30.2 | 1/2 | M14 | UCX13-40
UCX13 | FCSX13 | 5.8 |
UCFCSX14-44
UCFCSX14 | 2-3/4 | 70 | 222 | 191 | 134 | 14 | 19 | 19.8 | 14.3 | 36 | 162 | 58.5 | 77.8 | 33.3 | 5/8 | M16 | UCX14-44
UCX14 | FCSX14 | 7.7 |
UCFCSX15-47
UCFCSX15-48
UCFCSX15 | 2-15/16
3 | 75 | 222 | 191 | 134 | 12 | 19 | 22 | 15.9 | 35 | 162 | 61.3 | 82.6 | 33.3 | 5/8 | M16 | UCX15-47
UCX15-48
UCX15 | FCSX15 | 8.3 |
UCFCSX16-50
UCFCSX16 | 3-1/4 | 80 | 260 | 219 | 155 | 10 | 23 | 25.4 | 19 | 36 | 187 | 61.6 | 85.7 | 34.1 | 3/4 | M20 | UCX16-50
UCX16 | FCSX16 | 10.6 |
UCFCSX17-55
UCFCSX17 | 3-7/16 | 85 | 260 | 219 | 155 | 10 | 23 | 25.4 | 19 | 36 | 187 | 66.3 | 96 | 39.7 | 3/4 | M20 | UCX17-55
UCX17 | FCSX17 | 11.2 |
UCFCSX18 | | 90 | 260 | 219 | 155 | 12 | 23 | 27.8 | 19 | 43 | 187 | 73.1 | 104 | 42.9 | 3/4 | M20 | UCX18 | FCSX18 | 11.9 |
UCFCSX20 | | 100 | 276 | 238 | 168 | 22 | 23 | 27.8 | 22.2 | 66 | 206 | 90.3 | 118 | 49.2 | 3/4 | M20 | UCX20 | FCSX20 | 18.4 |
