Housing No.

Shaft

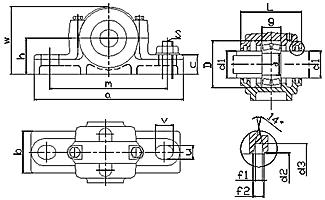

Dimensions mm

Weight (kg)

Bearing No.

Adapter Sleeve

d1

a

m

h
h12

c

L

b

D
h8

g
h12

f1
H12

f2

d2
h12

d3
h12

v

u

1504

17

128

98

31

14

50

34

47

18

2.5

3.2

18.5

28

16

12

0.67

1204K

2204K

H204

H304

1505

20

134

104

34

15

57

37

52

18

2.5

3.5

21.5

31

16

12

0.78

1205K

2205K

H205

H305

1506

25

150

118

39

15

60

40

62

20

2.8

3.5

26.5

38

18

12

1

1206K

2206K

H206

H306

1507

30

177

140

45

17

69

44

72

23

3.2

4

31.5

43

20

14

1.6

1207K

2207K

H207

H307

1508

35

190

150

48

18

75

53

80

23

3.2

4

36.5

48

22

14

1.95

1208K

2208K

H208

H308

1509

40

195

157

52

19

77

53

85

23

3.5

4

41.5

53

22

14

2.2

1209K

2209K

H209

H309

1510

45

206

165

54

21

83

56

90

23

3.5

4

46.5

58

22

14

2.8

1210K

2210K

H210

H310

1511

50

229

183

62

22

90

67

100

25

3.5

4

51.5

67

25

18

3.7

1211K

2211K

H211

H311

1512

55

249

205

69

22

92

69

110

28

3.5

4

56.5

72

25

18

4.8

1212K

2212K

H212

H312

1513

60

266

217

73

26

94

73

120

31

4.5

5

62

77

25

18

5.5

1213K

2213K

H213

H313

1515

65

280

225

78

26

95

75

130

31

4.5

5

67

82

26

18

6

1215K

2215K

H215

H315

1516

70

300

240

86

26

110

78

140

33

5

6

72

89

28

18

8.2

1216K

2216K

H216

H316

1517

75

320

260

92

28

125

88

150

36

6

6.5

77

94

30

18

10

1217K

2217K

H217

H317

1518

80

360

290

100

30

130

90

160

40

6

6.5

82

99

40

22

13

1218K

2218K

H218

H318
